50kN high frequency vibration Test System composed of vibration shaker , power amplifier, horizontal slip table, head extender table, vibration controller, accelerometer, etc., can be divided into two types: air-cooled type and water-cooled type . It is a necessary test equipemnt for design, development, production, quality control and quality assurance of modern products. It is different from ordinary vibration test table. The electrodynamic vibration shaker is mainly for high frequency, large displacement and large tonnage direction. At the same time, the 50kN high frequency vibration table has the advantages of broad vibration response frequency, high control precision, simulation of various waveforms and specifications, easy control, good expansion performance and easy maintenance.
Multi-Mode Regulation
Sine, Random, Resonant search and dwell, Classical Shock and Road simulation modes.
Strong Carrying Capacity
The central load airbag has large static stiffness, small dynamic rigidity, strong carrying capacity, and good effect when the amplitude changes.
Zero Interference Control
Double magnetic circuit design has low magnetic flux leakage, and the magnetic field is uniformly solved due to strong electromagnetic field control Circuit interference.
Professional Manufacturer
Independent research and development production in the same industry with high cost performance, excellent quality, maintenance and technical support.
Features
Performance Characteristics
● Forced air cooling system
● Random and sinusoidal excitation force 1:1
● Displacement peak-to-peak value 25mm,40mm,51mm, 76mm,100mm
●The trunnion airbag has good isolation effect
●Double magnetic circuit design, low magnetic flux leakage, uniform magnetic field

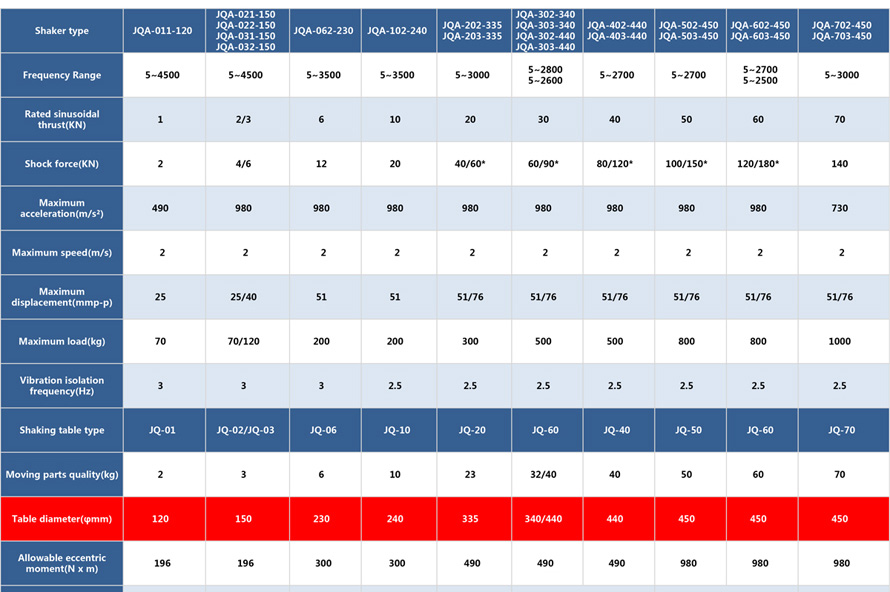

●Sinusoidal excitation force range: 3kN ~ 70kN
● Double sinusoidal impact force (three times when above 2 tons)
●Light moving coil, optimized design, strong vibration resistance
●The center airbag has strong carrying capacity and good low frequency performance.
● Configurable Slip Table
●The fan has good cooling effect and low noise
●The minimal frequency can start from 1Hz
System Performance
◎ First-order Resonance Frequency is High and the Frequency Band is Wide
The optimized moving coil skeletal structure design, especially the weak structure of the moving structure skeletal gusset of the traditional structure, is designed to enhance the transmission stiffness; the composite fixed winding ring and the winding are combined by imported glue and screws. The wire loop enhances the hole structure and enhances the stiffness of the winding. Significantly improved the first-order common vibration frequency of the moving coil, exceeding the international similar products.
◎ High Reliablility of Moving coil Winding
The new structure and technology of the original moving coil winding reinforcement ring significantly improve the vibration resistance reliability of the moving coil winding during high thrust, high acceleration vibration, impact and high temperature work environment.
◎ High Efficiency of Air Cooling System
Innovative design of electro-dynamic shaker's air duct design: improved air intake structure, upper magnetic ring replaces circular hole type air inlet by long groove type air inlet; field coil adopts honeycomb air duct and middle magnetic ring adopts double air flow type airduct . The lower magnetic ring adopt a new structure of wedge-shaped air duct, which significantly improves the cooling effect.
◎ Cooling Fan

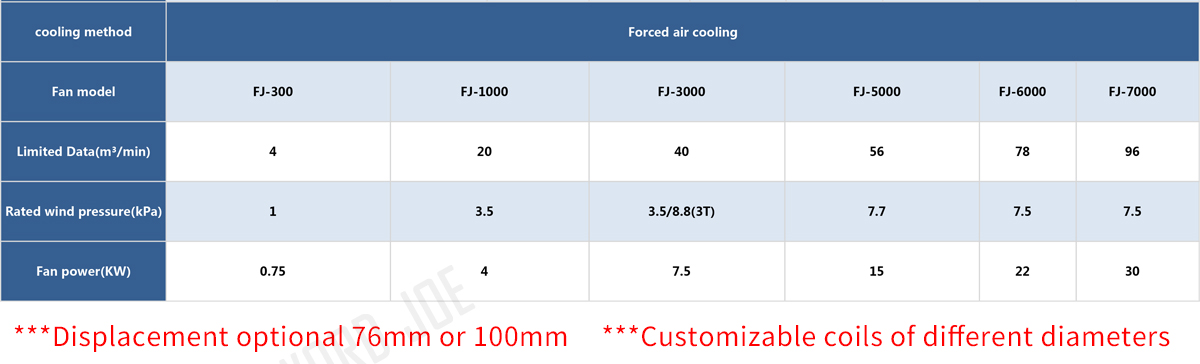

The cooling fan has a unique air duct design, and the fan has good cooling effect and low noise.
◎Horizontal Vibration and Vertical Vibration Test

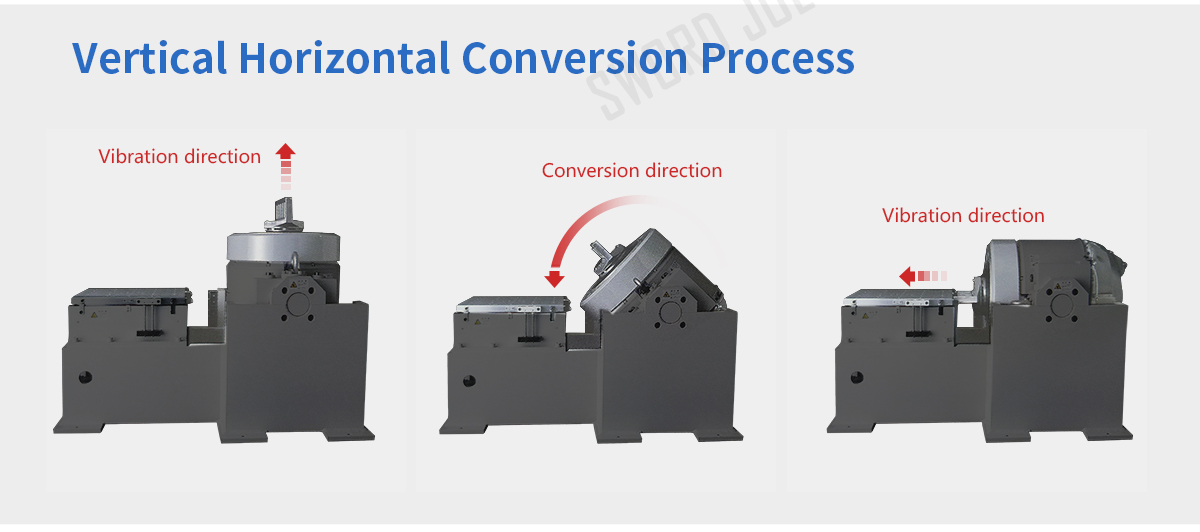

The electrro-dynamic shaker with slip table can be used for horizontal and vertical vibration tests. The switching between the veritical vibration and horizental vibration is simple and convenient .
◎Adopt IGBT Module
The amplifiers adopt reliable MOSFET and IGBT modules for high stability and reliability.
◎ Safety Performance
The product meets the European standard test requirements, and an emergency stop switch is installed on the power amplifier to effectively respond to emergencies. Meets US ,UL and CE safety requirements.
